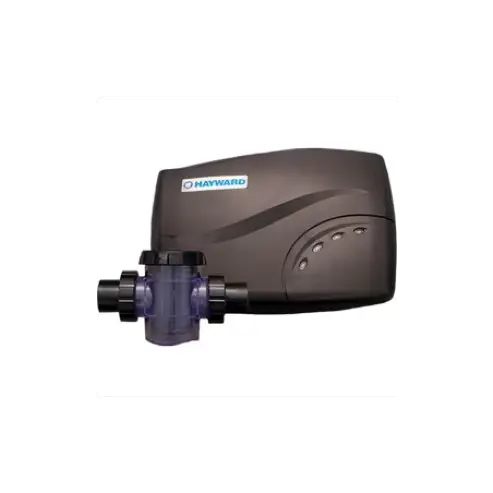

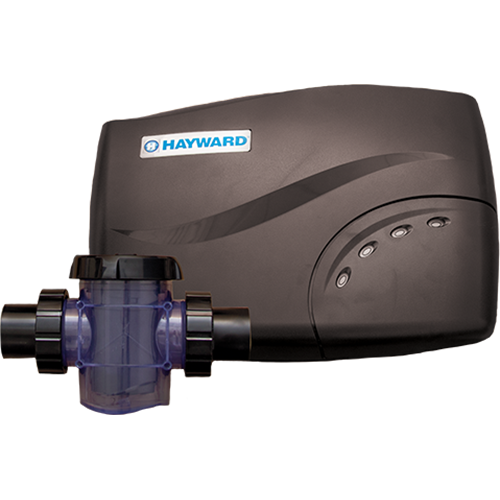

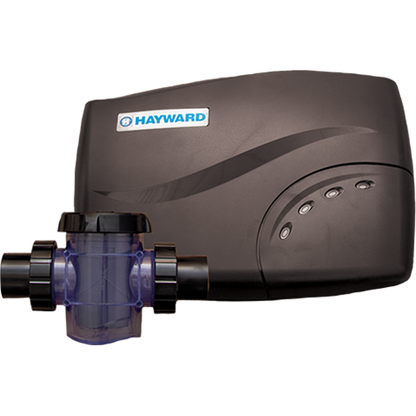

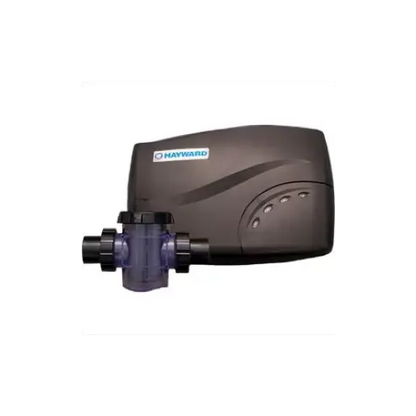

The Hayward AQR100 AquaRite 100 is a salt chlorination system built for in-ground pools up to 30,000 gallons. It runs on dual voltage (120V or 240V), converts dissolved salt into chlorine automatically, and gives pool owners the softer, gentler water salt systems are known for — without the daily hassle of manually dosing chlorine.
Key Features
- Automatically converts dissolved salt into chlorine for continuous, hands-off sanitization
- Dual-voltage design runs on 120VAC or 240VAC, 50/60Hz — shares a circuit with the pool pump
- Adjustable chlorine output from 0% to 100% for precise sanitization control
- Reverse-polarity self-cleaning cell technology helps prevent scale buildup and reduces maintenance
- Operates across a salt range of 1,500–4,500 ppm (ideal range approximately 3,000–3,200 ppm)
- Weatherproof control unit built to perform in all outdoor conditions
- Clear cell housing makes visual inspection and servicing easy
- Rated for in-ground pools up to 30,000 gallons
- Backed by a 3-year manufacturer warranty
Specifications
| Brand |
Hayward |
| Model / SKU |
AQR100 |
| Pool Size |
Up to 30,000 gallons (in-ground) |
| Voltage |
Dual voltage – 120VAC or 240VAC, 50/60Hz |
| Salt Range |
1,500–4,500 ppm (ideal ~3,000–3,200 ppm) |
| Chlorine Output |
Adjustable 0–100% |
| Minimum Flow Rate |
20–25 GPM |
| Power Cord |
6 ft. |
| Dimensions |
17"L x 14"H x 13"W |
| Weight |
22 lbs |
| Warranty |
3 years |
| UPC / Barcode |
0610377383288 |
Frequently Asked Questions
What size pool is the Hayward AQR100 rated for?
It's designed for in-ground pools up to 30,000 gallons.
Does it run on 120V or 240V power?
Both — the AQR100 has dual-voltage wiring and can be powered by either 120VAC or 240VAC on the same circuit as your pool pump.
What salt level does the system need?
It operates across a 1,500–4,500 ppm range, with an ideal concentration around 3,000–3,200 ppm — well below the level most swimmers can taste.
Can I control how much chlorine it produces?
Yes. Output is adjustable from 0% to 100%, so you can dial in sanitization to match bather load, weather, and season.
Does the cell clean itself?
Yes. The AQR100 uses reverse-polarity technology to automatically clean the cell and cut down on manual maintenance.
What's the minimum flow rate for installation?
Hayward specifies a minimum flow rate of 20–25 GPM through the cell for proper operation.
What's the warranty?
The AQR100 carries a 3-year manufacturer warranty.
