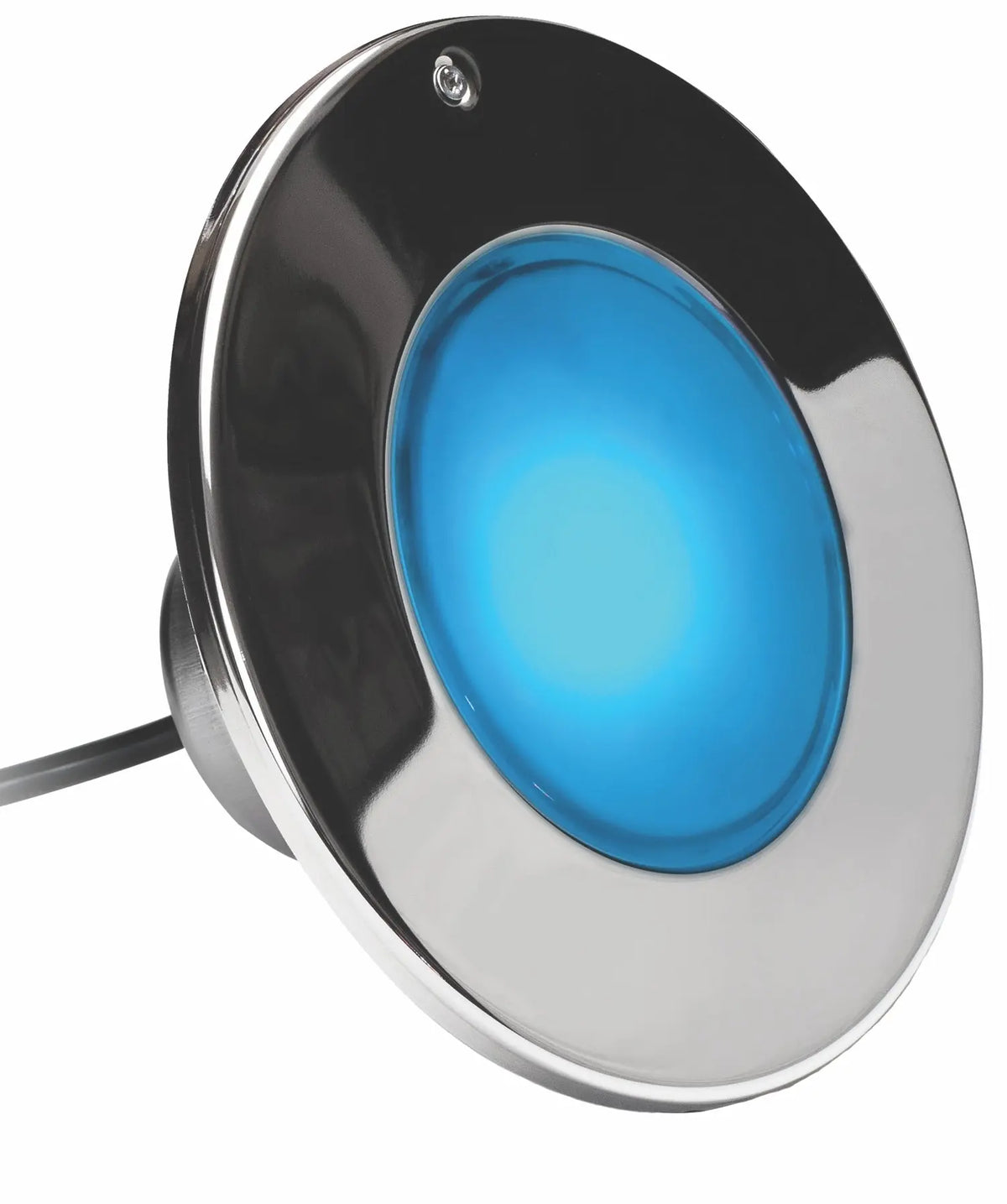

The J&J Electronics 23002 ColorSplash® XG-W Series RGB+White LED Pool Light brings five solid colors, seven light shows, and a dedicated PureWhite® mode to your pool. This is the 120V, 58W model with a 100-foot cord, built to replace most Hayward, Pentair, and Jandy wet niches.

Key Features

• RGB + White with PureWhite mode: Five solid colors, seven light shows, plus a dedicated white circuit producing roughly 3,900 lumens — equivalent to a 500W incandescent.
• Line-voltage 120V operation — no transformer required.
• 100-foot cord for the run from niche to junction box.
• Universal niche fit: Replaces most Hayward, Pentair, and Jandy wet niches.
• Wide-angle LEDs increase coverage area, with high-output diodes for stronger colour saturation.
• Automation ready: Operates with Jandy and Pentair automation systems, and synchronises with ColorSplash XG, LXG and LXG-W fixtures and lamps.
• Rugged construction: 316 stainless rim, encapsulated housing, tempered glass zero-pixilation lens.
• 3-year manufacturer warranty through Hayward.

Specifications

• Part Number: 23002 (model LPL-F2CW-120-100-P)
• Type: ColorSplash XG-W RGB+White LED pool light
• Voltage: 120V
• Wattage: 58W (equivalent to 500W incandescent)
• Peak Lumens: 3,900
• Colour Temperature: 6500K cool white
• Cord Length: 100-foot
• Brand: J&J Electronics (Hayward)
• UPC: 8071542300202

Frequently Asked Questions

Is the J&J 23002 a 12V or 120V light?

It's the 120-volt model and runs on line voltage with no transformer needed.

What other cord lengths are available?

The same 120V 58W fixture comes as the 23000 (30'), 23001 (50'), 23003 (150'), 23004 (200') and 23005 (300').

What niches does it fit?

It replaces most Hayward, Pentair, and Jandy wet niches in gunite, vinyl, or fiberglass pools.

Is this a color or white light?

Both — RGB+White with five solid colors, seven light shows, and a dedicated PureWhite mode.

Does it work with pool automation?

Yes — it operates with Jandy and Pentair automation systems. The system must be programmable to run Pentair IntelliBrite 5G LED colour. Check your owner's manual.

Is professional installation required?

Installation by a qualified pool professional or electrician is recommended and may be required to validate warranty. Always disconnect power before servicing.

Can I replace an incandescent pool light with an LED?

In most cases yes, and it is the common upgrade path, but the niche size, cord length and voltage must all match. LED fixtures draw far less power and last considerably longer than the incandescent lamps they replace.

How long a cord do I need?

The cord has to reach from the niche all the way to the junction box with slack for servicing. Cord length is fixed at the factory, so measure before ordering rather than after.

Does pool light work need an electrician?

Pool lighting sits under specific electrical code requirements covering bonding, grounding and GFCI protection. Cut power at the breaker before removing any fixture, and have a licensed professional handle the junction box and supply side.

Is there a warranty on this pool light?

It carries the standard J&J Electronics manufacturer warranty. Terms are set by J&J Electronics, and on some equipment coverage only applies when a licensed professional performs the installation. Keep the receipt and packaging until you've confirmed correct operation.
