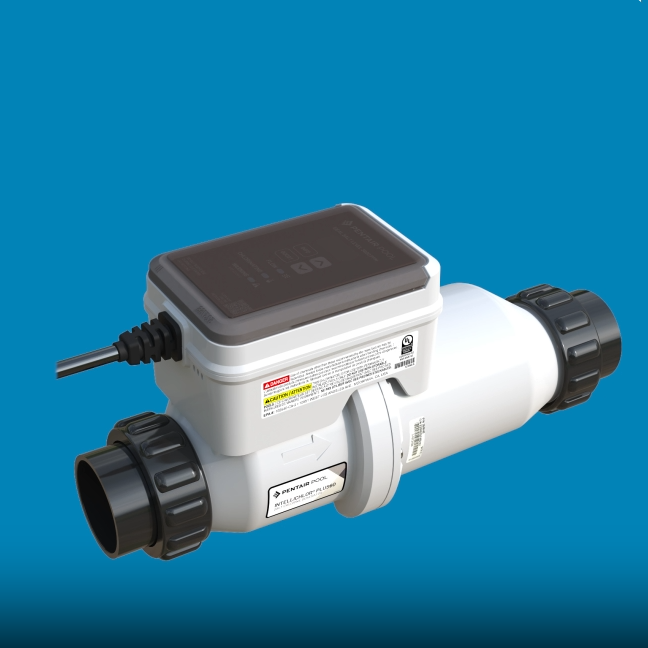

The Pentair 523738 IntelliChlor PLUS60 is the factory replacement for the discontinued IC60 salt cell, part 521105. It converts ordinary pool salt into pure chlorine so you stop hauling, storing, and dosing tablets or liquid. Sized for inground pools up to 60,000 gallons.

This is Pentair's next generation cell, not an aftermarket copy. It uses the same dimensions and thread size as the IC60 and includes unions, so it drops into the same plumbing with no cutting and no retrofitting. It runs on your existing IntelliChlor Power Center.

Why the PLUS60 over the old IC60

• Redesigned conductivity sensor for far more accurate salt readings
• Modular build, so electronics and sensors can be serviced without replacing the whole cell
• More onboard diagnostics and clearer status readouts
• Same output rating at 2.0 lbs of chlorine per 24 hours at 100 percent

Features

• Direct drop-in replacement for Pentair IntelliChlor IC60 521105
• For inground pools up to 60,000 gallons
• Unions included for a straight swap
• Titanium cell plates with self cleaning reverse polarity
• Onboard display shows salt level, cell life, water flow, and output
• Vertical or horizontal installation
• Outdoor rated with a 15 foot power cord
• Acid cleaning kit included

Compatibility

• Works with the Pentair IntelliChlor Power Center, sold separately
• Integrates with Pentair automation including IntelliCenter, EasyTouch, and IntelliTouch
• Not compatible with non Pentair salt systems

What you need to know before ordering

This is the cell only. It requires an IntelliChlor Power Center to operate. If your existing IC60 was running on a Pentair power center, you already have what you need. If you are building a new system, you will need the power center as well.

Specifications

Frequently Asked Questions

Is the Pentair 523738 the same as the 521105 IC60?
No, but it is the direct factory replacement for it. Pentair discontinued the IC60 (521105) and replaced it with the IntelliChlor PLUS60 (523738). Same 60,000 gallon capacity, same 2.0 lbs of chlorine per 24 hours, same dimensions and thread size.

Will the PLUS60 fit my existing IC60 plumbing?
Yes. The PLUS60 matches the IC60 dimensions and thread specs and ships with unions, so it goes back into the same spot with no cutting or replumbing.

Do I need a new power center for the PLUS60?
No. It runs on your existing Pentair IntelliChlor Power Center. This listing is for the cell only, so if you do not already have a power center you will need to add one.

What size pool is the 523738 for?
Inground pools up to 60,000 gallons.

How much chlorine does the PLUS60 produce?
2.0 lbs per 24 hours at 100 percent output.

Does the PLUS60 work with Pentair automation?
Yes. It integrates with IntelliCenter, EasyTouch, and IntelliTouch.

Will this work with my Hayward or Jandy salt system?
No. The IntelliChlor PLUS60 only works with Pentair IntelliChlor power centers. It is not compatible with other manufacturers' salt systems.

What is different about the PLUS60 compared to the old IC60?
The conductivity sensor was redesigned for far more accurate salt readings, the build is modular so electronics and sensors can be serviced separately, and there are more onboard diagnostics. Output and pool capacity are unchanged.

Can the cell be installed vertically or horizontally?
Either. The PLUS60 supports both orientations.

Does it come with a cleaning kit?
Yes. An acid cleaning kit is included.

How long is the cord?
15 feet.

Is this a genuine Pentair part?
Yes. This is an OEM Pentair cell, not an aftermarket or refurbished unit.

How do I know when my salt cell needs replacing?
Cell life shows on the display. Most cells run 5 to 7 years depending on runtime and water chemistry. If output drops off and the cell is clean and salt levels are correct, the plates are worn.
