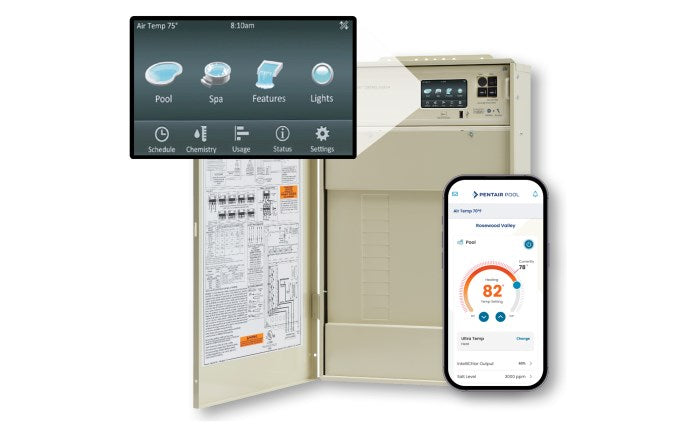

The Pentair 524000 IntelliCenter Load Center is the genuine OEM automation panel that centralizes control of pool and spa equipment — filtration, heating, lighting, water features, valves and salt chlorination — into a single touchscreen system controllable from the Pentair Pool app.

What's Included

• IntelliCenter Load Center with Pool/Spa personality card
• Built-in salt chlorine generator transformer (Salt Ready)
• 5 relays installed, expandable to 10
• Two Compool valve actuators

Key Features

• Genuine Pentair OEM: factory load center built for the IntelliCenter automation platform.
• App-based control: remote monitoring and scheduling from anywhere through the Pentair Pool app.
• Color touchscreen setup: a guided setup wizard walks through programming step by step on-screen.
• Salt ready: built-in transformer supports an IntelliChlor salt chlorine generator without extra wiring.
• Expandable relay capacity: ships with 5 relays and can grow to 10 as your equipment list grows.
• Professional remote access: supports IntelliCenter Remote Access for Pros for dealer diagnostics.
• Replaces multiple legacy kits: supersedes Pentair SKUs 523687, 523686, 523967 and 523968.

Specifications

• Part Number: 524000
• Type: Pool/Spa automation load center, salt ready
• Relays: 5 installed, expandable to 10
• Valve Actuators: 2 Compool actuators included
• Dimensions: 44 in L x 20 in W x 10 in D
• Weight: 55 lb
• Brand: Pentair (Genuine OEM)

Frequently Asked Questions

Does this include the touchscreen indoor control panel?

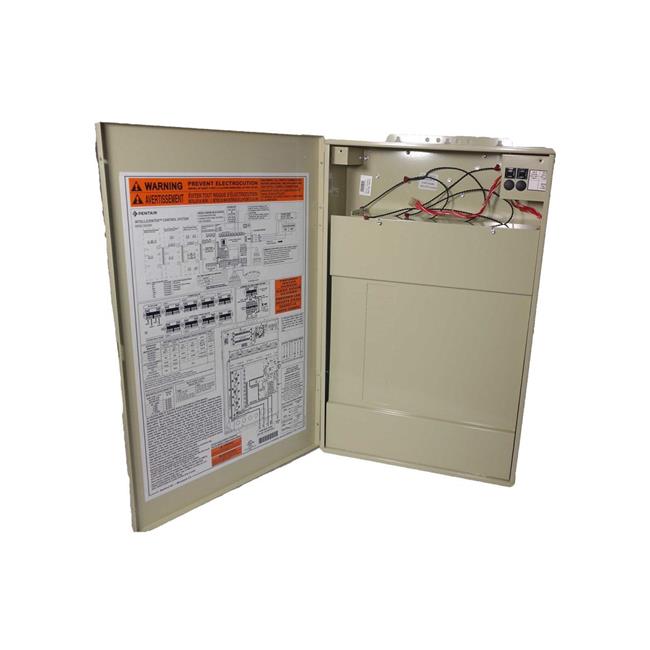

This is the outdoor load center — the equipment pad enclosure housing the relays, transformer and valve actuators. Confirm with us whether your setup also needs a separate indoor or outdoor touchscreen control panel.

Is a salt chlorine generator included?

No. The unit is "salt ready," meaning the transformer needed to power an IntelliChlor salt cell is built in, but the salt cell itself is sold separately.

Can I add more than 5 relays later?

Yes. The load center ships with 5 relays installed and supports expansion up to 10 as additional equipment is added to your pad.

What older Pentair systems does this replace?

This load center configuration supersedes the legacy 523687, 523686, 523967 and 523968 kits.

Who should install it?

A qualified pool professional or licensed electrician. This is a line-voltage automation panel and must be installed and wired per local electrical code, with power isolated at the breaker before the enclosure is opened.
