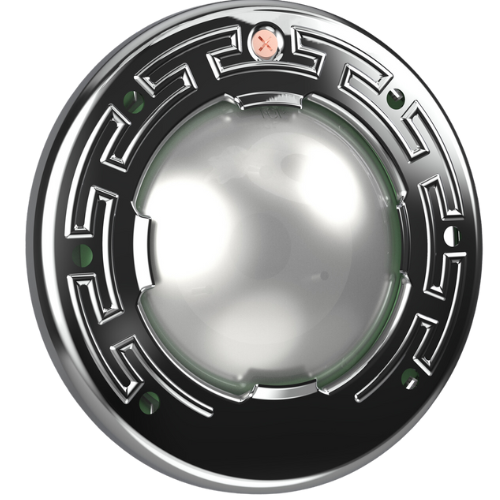

The Pentair 618017 IntelliBrite Architectural Series White LED Spa Light is the current generation of Pentair spa lighting. This is the 12V, 18W model with a 100 ft cord, rated as a 100W incandescent equivalent, and it is the direct replacement for the IntelliBrite 5G white spa light 640152.
Key Features
-
Refined optics: the redesigned lens spreads light evenly across the spa with fewer hot spots, dark areas and glare than first-generation LED.
-
Brighter and more efficient: Pentair rates the Architectural Series white light at 2.3% more output than IntelliBrite 5G white while using 44% less power.
-
12V low voltage: runs through a 12V safety isolation transformer.
-
100 ft cord for junction boxes set well back from the spa.
-
Automation ready: works with Pentair IntelliCenter, IntelliTouch and EasyTouch automation and standard light switches.
-
Direct 5G replacement: same niche fitment as the IntelliBrite 5G spa light 640152, so it drops into existing Pentair spa niches.
- UL and cUL listed.
Specifications
| Brand |
Pentair |
| Part Number |
618017 |
| Series |
IntelliBrite Architectural |
| Type |
White LED spa light fixture |
| Voltage |
12V |
| Wattage |
18W |
| Incandescent Equivalent |
100W |
| Cord Length |
100 ft |
| Replaces |
IntelliBrite 5G 640152 |
| UPC / Barcode |
788379907907 |
Frequently Asked Questions
Is the Pentair 618017 a 12V or 120V light?
12V. It requires a 12V safety isolation transformer. For the 120V Architectural white spa light, see the 602 series.
What other cord lengths are available?
The same 12V 18W white spa light comes as the 618015 (30 ft), 618016 (50 ft) and 618018 (150 ft).
Does it replace my IntelliBrite 5G spa light?
Yes. The 618017 is Pentair's direct replacement for the 5G white spa light 640152 and fits the same Pentair spa niche.
Is it a pool light or a spa light?
Spa light. It's the small-format fixture for spa niches. For pools, use the Architectural Series pool lights, which are larger and rated higher.
Does it work with pool automation?
Yes. It runs on Pentair IntelliCenter, IntelliTouch and EasyTouch automation as well as a standard on/off switch.
Is professional installation required?
Yes. Pentair requires installation by a licensed electrician or qualified pool professional to validate the warranty, and pool lighting must meet electrical code for bonding, grounding and GFCI protection. Cut power at the breaker before servicing.
