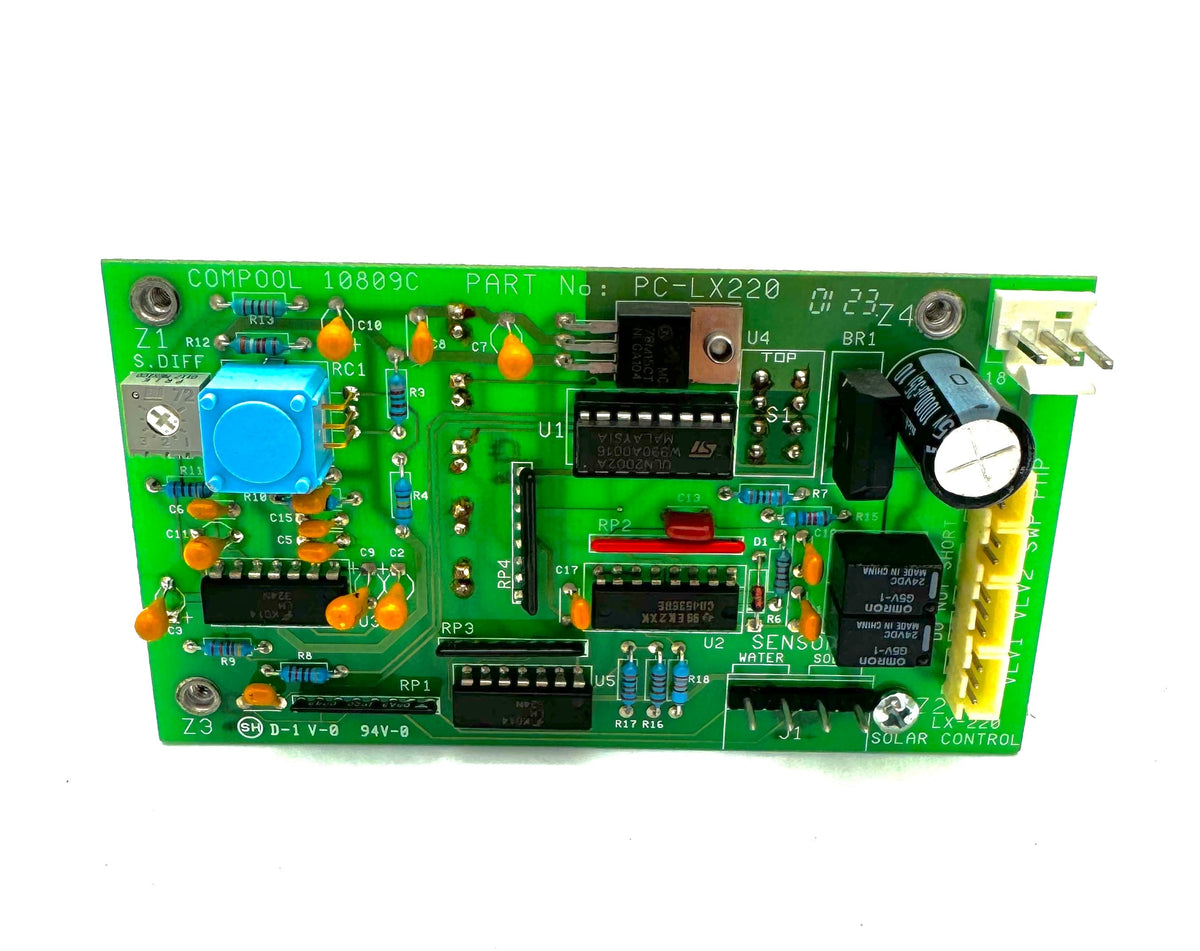

The Pentair 10809C Compool PC‑LX220 Replacement Circuit Board is a direct, OEM‑quality electronic control board designed to restore full functionality to Pentair Compool LX220 pool and spa systems. When your original control board fails, malfunctions, or becomes unresponsive, this replacement board delivers precise electrical management and reliable operation for pumps, heaters, lights, and other connected devices.

Engineered to match the specifications of the original LX220 controller, the 10809C replacement board ensures stable performance, accurate timing, and effective command execution—helping your pool automation run as intended. Installation is straightforward for technicians familiar with Pentair control components, and the board’s robust design ensures long‑lasting reliability.

Pentair 10809C Compool PC‑LX220 Replacement Circuit Board Compatibility

• Designed specifically for Pentair Compool LX220 pool automation systems.

• Compatible with original LX220 wiring harnesses and peripherals.

• Works with Pentair‑branded pumps, heaters, lights, actuators, and other LX220‑connected equipment.

• Ideal direct replacement for failed or malfunctioning LX220 control boards.

• Retrofit‑ready for standard Compool LX220 installations without system redesign.

Key Features

• Genuine Pentair part, supplied under manufacturer part number PC-LX220.
• Ships from our US warehouse with tracking on dispatch.

Specifications

• Brand: Pentair
• Manufacturer part number: PC-LX220
• Category: Pool & Spa Parts
• Condition: New
• UPC / GTIN: 758614182819
• Shipping weight: 3 lb

Frequently Asked Questions

Is the PC-LX220 a genuine Pentair part?

Yes. The PC-LX220 is a Pentair part supplied under that manufacturer part number. It is not a generic substitute.

How do I confirm this part fits my equipment?

Check the part number stamped on the component you are replacing, or find it on the parts schematic in your owner's manual. If the number differs or is unreadable, send us your equipment model and serial number and we will verify fitment before you order.

How quickly does this ship?

In-stock items ship from our US warehouse on business days. You will receive tracking by email once the order leaves the warehouse.

Can I return it if I ordered the wrong part?

Unopened, uninstalled items can be returned within 30 days. Equipment that has been installed or plumbed cannot be returned, so confirm fitment before installation.

Is this covered by a warranty?

Manufacturer warranty terms vary by brand and product. Warranty claims generally require proof of purchase and, on installed equipment, evidence of professional installation.
